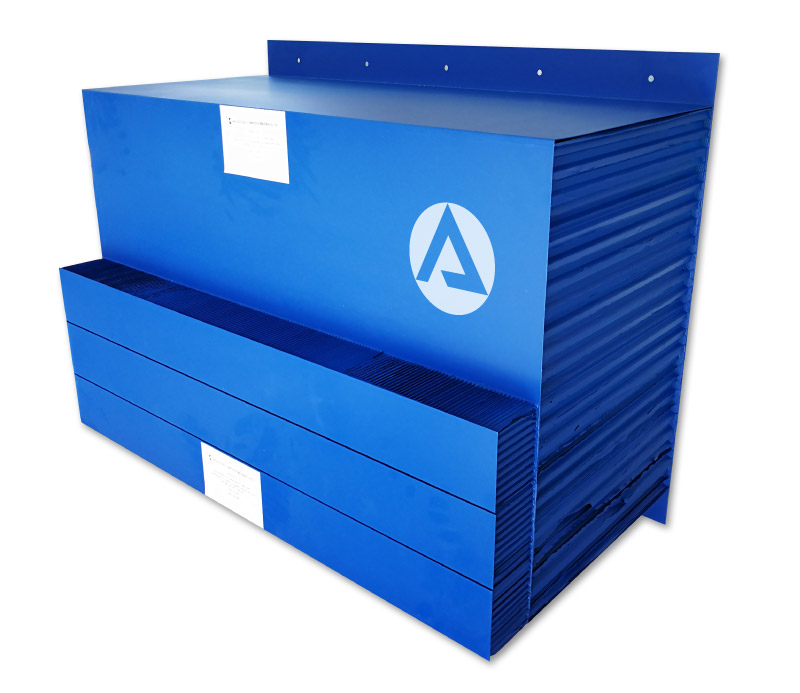

ODB Frontal Impact Barrier

Offset Deformable Barrier - EEVC-WG11

Share:

Based on aluminum honeycomb technology, the AXAC frontal offset barrier (developed under EEVC-WG11) is used by car manufacturers and test laboratories worldwide for the assessment of motor vehicle passenger protection in frontal offset collisions.

The frontal offset impact replicates a collision with another vehicle. In this test, 40% of the test vehicle on the driver’s side initially makes contact with a crushable aluminum honeycomb barrier at the impact speed defined by the standards requirements.

Technical Properties

Main Honeycomb Block – Aluminum 3003
650 x 1000 x 450 mm
Crush strength of 0.342 MPa +0/-10%

Bumper Element Block – Aluminum 3003
330 x 1000 x 90 mm
Crushstrength of 1 .711 MPa +0/-10%

Backing Sheet – Aluminum 5251/5052
H 800 x W 1000mm
T2mm

Cladding Sheet – Aluminum 5251/5052
H 1700 x W 1000mm
T 0.81 mm

Bumper Facing Sheet – Aluminum 5251/5052
H 330 x W 1000mm
T 0.81 mm

A complete testing procedure for certification of aluminum honeycomb is performed in-house according to IIHS Side Impact Crashworthiness Evaluation 2.0, Moving Deformable Barrier Specification, version 2.0 from May 2020, and in accordance with the procedure defined in NHTSA TP-214D. The aluminum honeycomb blocks are processed such that the force deflection curve, when statically crushed, is within the corridors defined for each block.

ODB impact figure

Certification

The AXAC Offset Deformable Barrier is certified for frontal occupant protection such as:

The AXAC Offset Deformable Barrier is certified for frontal NCAP tests such as:

The AXAC Offset Deformable Barrier is approved by IIHS. IIHS will accept verification tests from car makers using ARGOSY Offset Deformable Barriers.

Technical Specification

The AXAC Offset Deformable Barriers are manufactured according to UNECE-R94 – European directive 96/79/EC, NHTSA TP-208-13 and fulfill the test procedure given in NHTSA TP-214D.

Quality

AXAC has an approved IS09001 Quality Management System, which demonstrates commitment to supplying customers with the highest quality products and services.

Delivery
