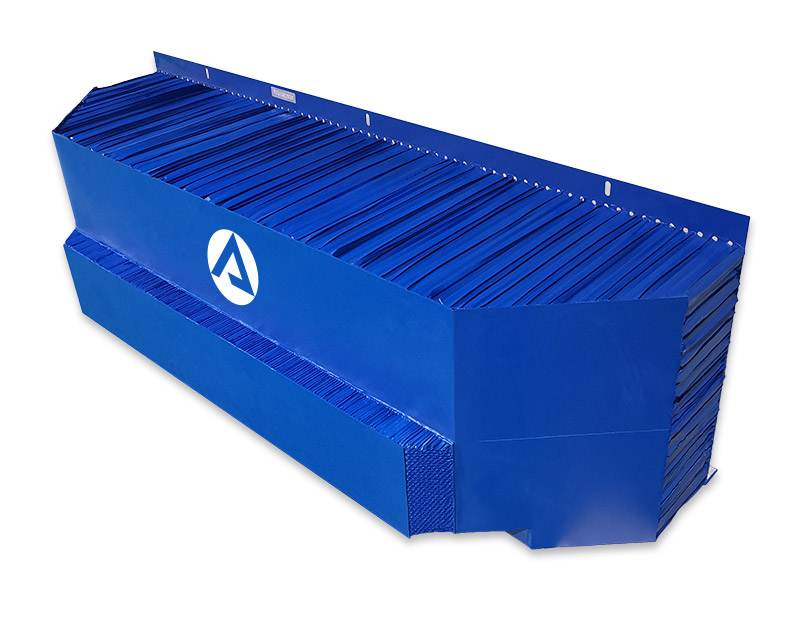

AE-MDB Side Impact Barrier

Euro NCAP Approved Supplier of Advanced European Mobile Progressive Deformable Barrier

Share:

Based on Aluminum Honeycomb technology, the AE-MDB barrier (Advanced European Mobile Progressive Deformable Barrier—Euro NCAP V1.0 TB014) is used by car manufacturers and test laboratories worldwide to assess motor vehicle passenger protection in side-impact test procedures according to the European New Car Assessment Programme (Euro NCAP).

The side-impact test consists of a 1300 kg trolley impact on the driver’s side of the test vehicle (1400 kg in far side occupant protection). The trolley is equipped with AE-MDB barrier, which aims at simulating the front of the impacting vehicle. The impact speed is defined according to the test specifications. ATD’s dummies are used to evaluate the injuries in this type of crash.

ARGOSY AE-MDB Barrier is Euro NCAP approved and part of the supplier list TB029 for official Euro NCAP tests.

Technical Properties

The side barrier consists of six single blocks of aluminum honeycomb, which have been processed in order to give a progressively increasing level of force with increasing deflection. An additional single element is attached to the front lower row of blocks with a depth of 60 mm. Front and rear aluminum plates are attached to the aluminum honeycomb blocks. The plates cover the angled surfaces.

Honeycomb Blocks A, C, D & F – Aluminum 3003 – cell size 19.10 mm
– 600 mm x 250mm Progressive Crush strength according to Euro NCAP Tech.
– Spec Blocks are crushed by 10 +/- 2 mm

Honeycomb Blocks B & E: – Aluminum 3003 – cell size 19.10 mm
– 500mm x 250mm Progressive Crush strength according to Euro NCAP Tech.
– Spec Blocks are crushed by 10 +/- 2 mm

Honeycomb Bumper – Aluminum 3003 – cell size 6.35 mm
– 1220 mm x 200 mm Crush strength of 1.586 to 1.793MPa

Front Plates – Aluminum of series AlMg2 to AlMg3
– T 0.5 mm

Bumper Plate – Aluminum of series 5251 H22, 5052 H32 or 5052 H34
T 3 mm

Back Plate – Aluminum of series AlMg2 to AlMg3
– T 3 mm perforated for ventilation
– The upper mounting flange shall be vertical
– The lower mounting flange shall be bent through 90 degrees

Adhesive:
Polyurethane
Expanded polyester: Synthetic polyester thermo bonded 60g/m ± 20%

A complete testing procedure for certification of aluminum honeycomb is performed in-house according to Euro NCAP Advanced European Mobile Progressive Deformable Barrier Face Specification version 1.0 from April 2013 – TB014 and in accordance with the procedure defined in NHTSA TP-214D. The aluminum honeycomb blocks are processed such that the force-deflection curve, when statically crushed, is within the corridors defined for each of the six blocks.

Euro NCAP Advanced European Mobile Progressive Deformable Barrier - Graphic

Certification

The AE-MDB barrier is certified for NCAP tests:
Euro NCAP Advanced European Mobile Progressive Deformable Barrier - AE-MDB

Technical Certification

The ARGOSY AE-MDB side impact barrier dynamic certification tests are performed at << certified EuroNCAP Laboratory >> in compliance with EuroNCAP TB 014 protocol.

Quality

AXAC has an approved IS09001 Quality Management System, which demonstrates its commitment to supplying customers with the highest-quality products and services.

Delivery

Request Quote

Price

Quote required

Minimum Order Quantity

Quote required

Lead Time

Quote required

Regional Availability

Quote required

Argosy International Logo

Talk to an Expert

If you would like additional information, please fill in the form below. Your question will be routed to the appropriate department, and a representative will contact you shortly.

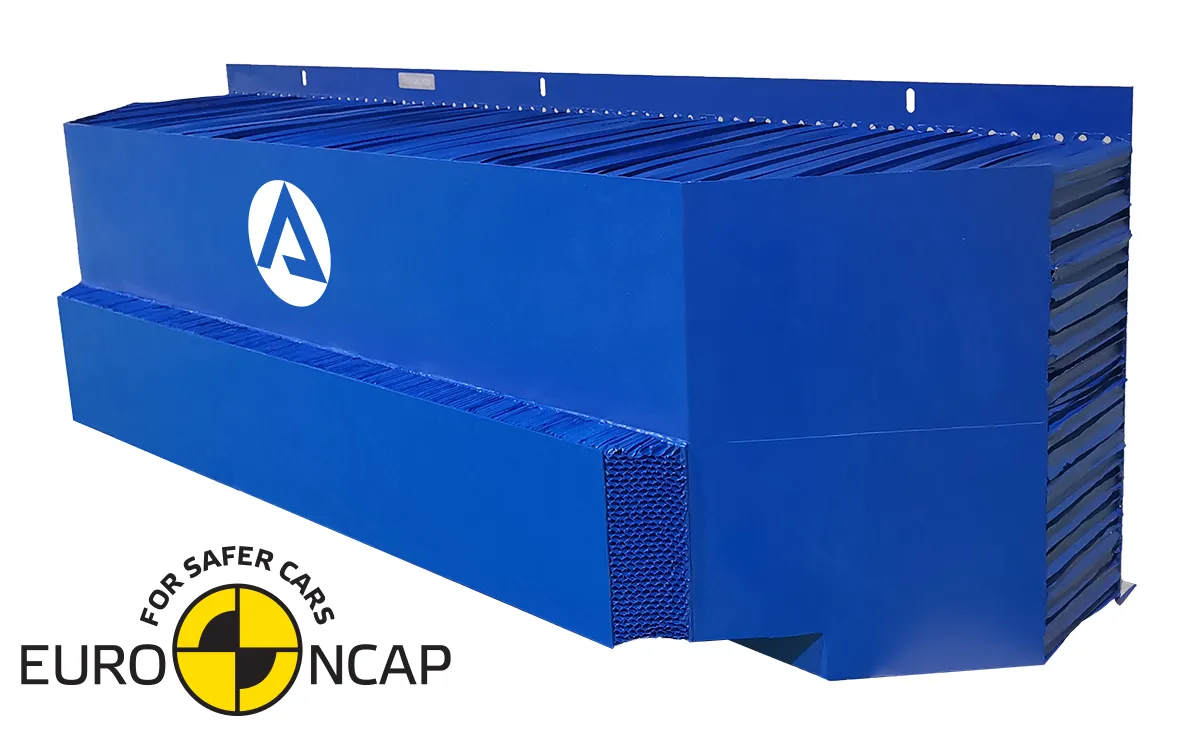

AE-MDB Crash Test Barrier
