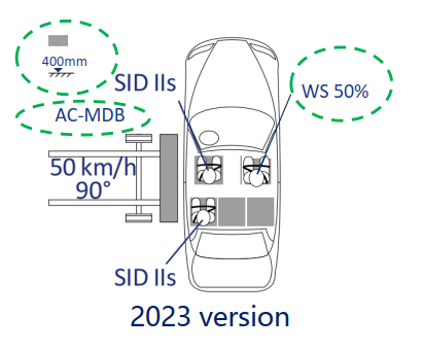

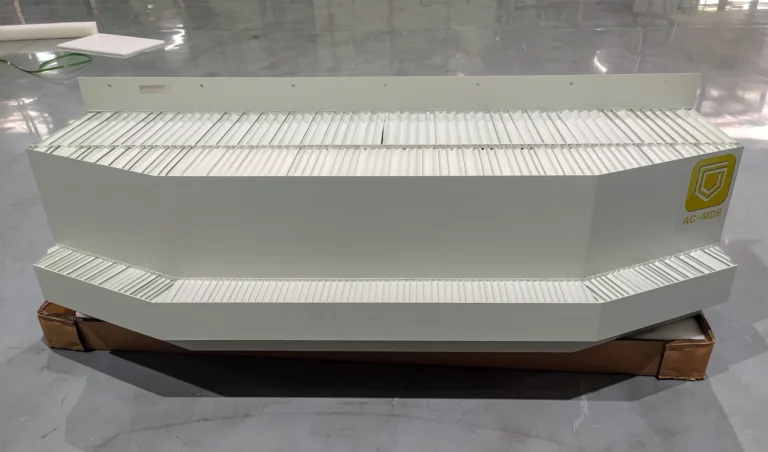

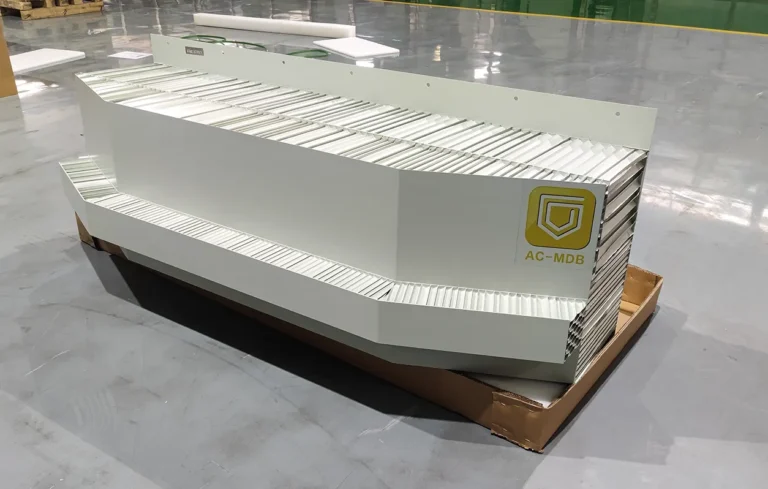

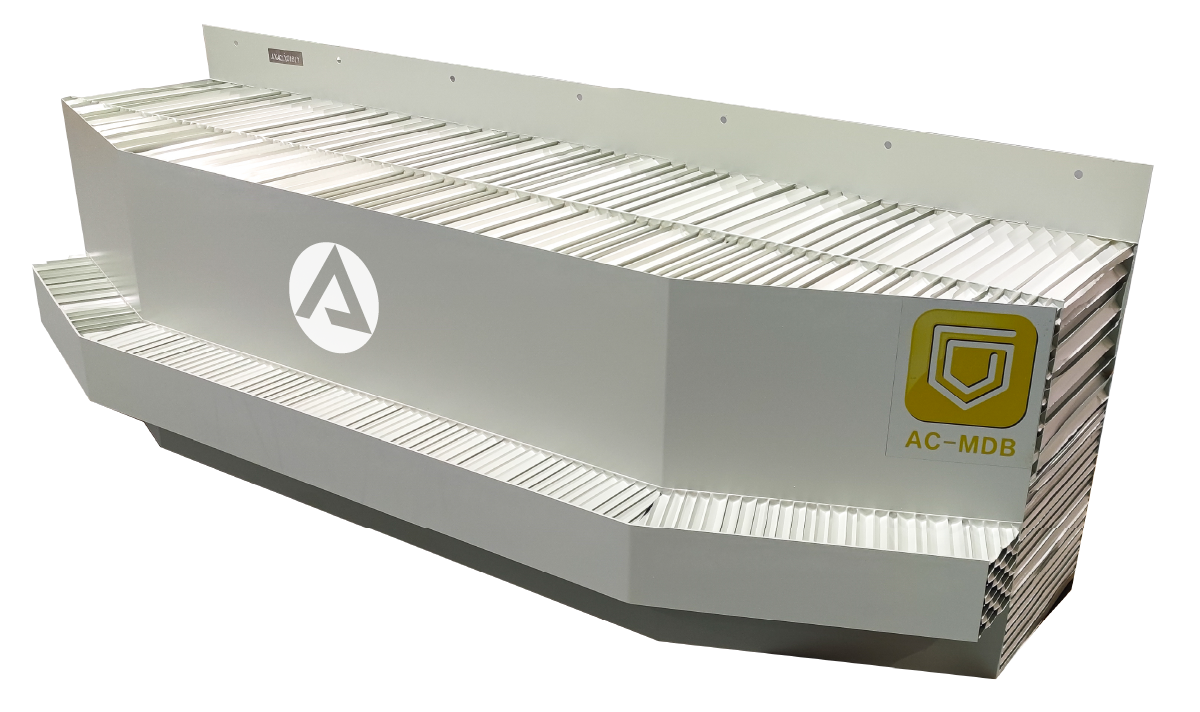

Based on Aluminum Honeycomb technology, the AC-MDB barrier (Side Impact Moving Deformable Barrier) is a new development barrier used in the C-IASI 2023 side impact crashworthiness evaluations.
AC-MDB barrier is designed by China Automotive Engineering Research Institute Co., LTD., developed jointly with Argosy XAC Composite Materials LTD., and produced by Argosy XAC Composite Materials LTD., which is suitable for China’s road conditions.

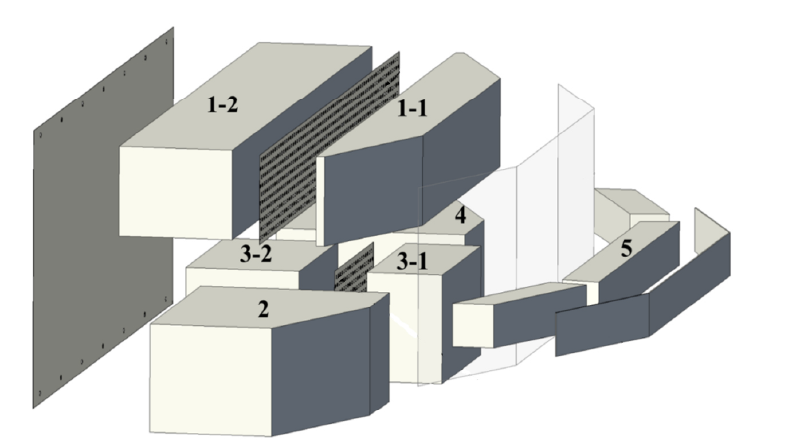

Upper Element Honeycomb Block 1-1 Material
Aluminum 3003 – cell size 3/4’’ Crush strength of 50 KPa
Upper Element Honeycomb Block 1-2 Material
Aluminum 3003 – cell size 1’’ Crush strength of 90 KPa
Lower Middle Bottom Element Honeycomb Block 3-1 Material
Aluminum 3003 – cell size 1’’ Crush strength of 90 KPa
Lower Middle Bottom Element Honeycomb Block 3-2 Material
Aluminum 3003 – cell size 3/8’’ Crush strength of 650 KPa
Middle Plate Element – Aluminum 5052 H32/H34, T=0.5mm
Adhesive:
Two-part Polyurethane
A complete testing procedure for certification of aluminum honeycomb is performed in-house according to C-IASI 2023 Side Impact Crashworthiness Evaluation, Moving Deformable Barrier Specification, and in accordance with the procedure defined by China Automotive Engineering Research Institute Co., LTD.
The aluminum honeycomb blocks are processed so that the force deflection curve, when statically crushed, is within the corridors defined for each block.
The AXAC AC-MDB CAERI side impact Moving deformable barrier is manufactured according to China Automotive Engineering Research Institute Co., LTD. Moving Deformable Barrier Specification, in compliance with the C-IASI 2023 Side Impact Crashworthiness Evaluation Crash Test Protocol – 2023.
