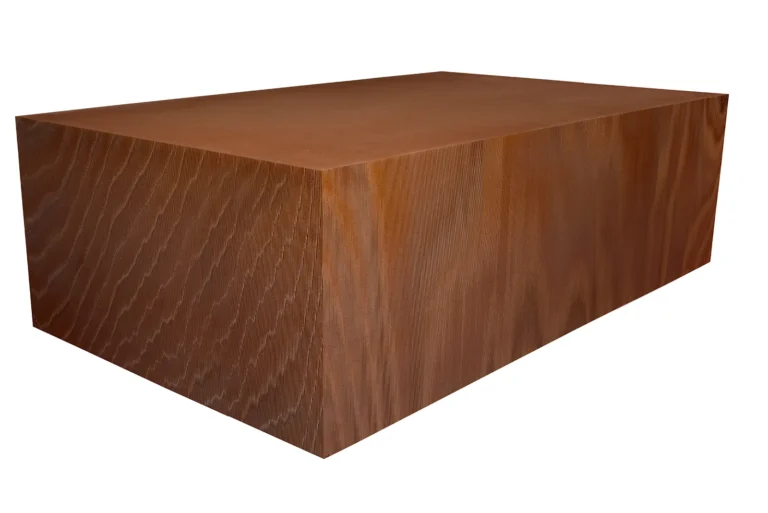

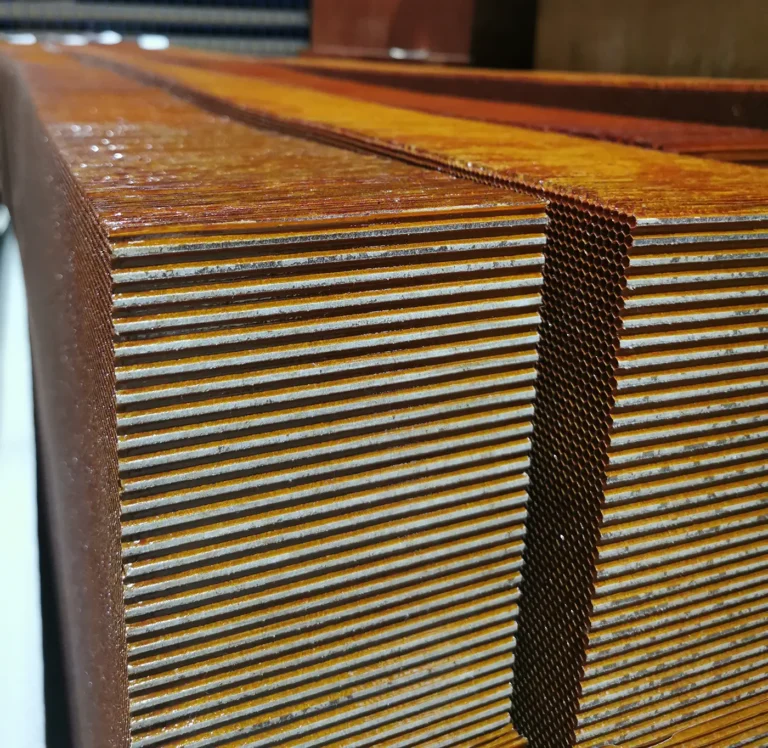

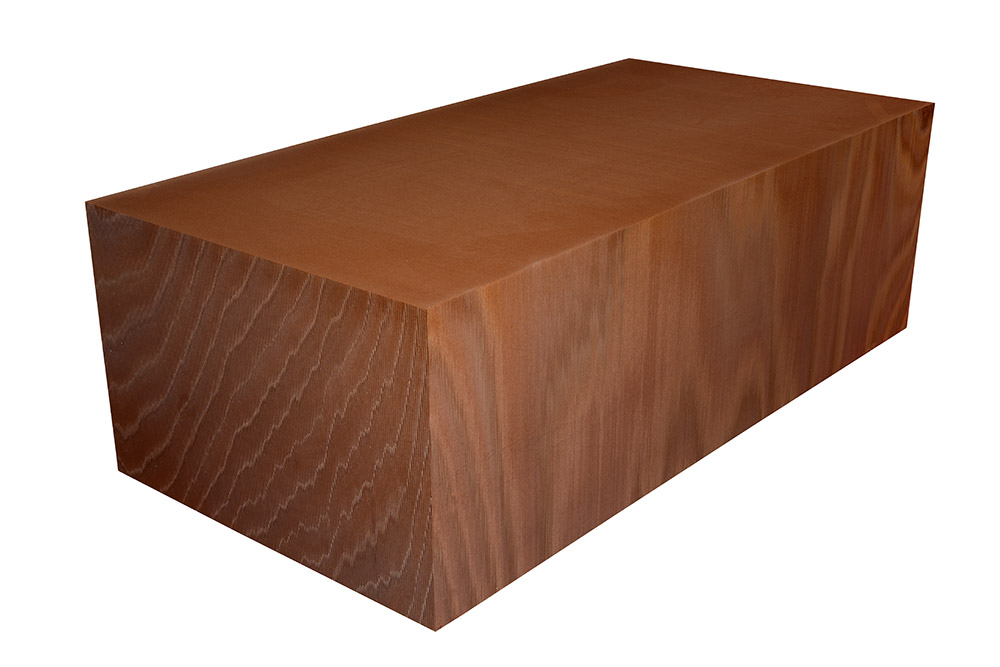

ARGOSY Aramid Honeycomb Core is a kind of sandwich structure composite made of aramid core by printing, stacking, thermal pressing, stretching, dipping, curing, slicing, and other machining processes, and by dipping in fire-resistant phenolic resin. Aramid core has a range of features such as:

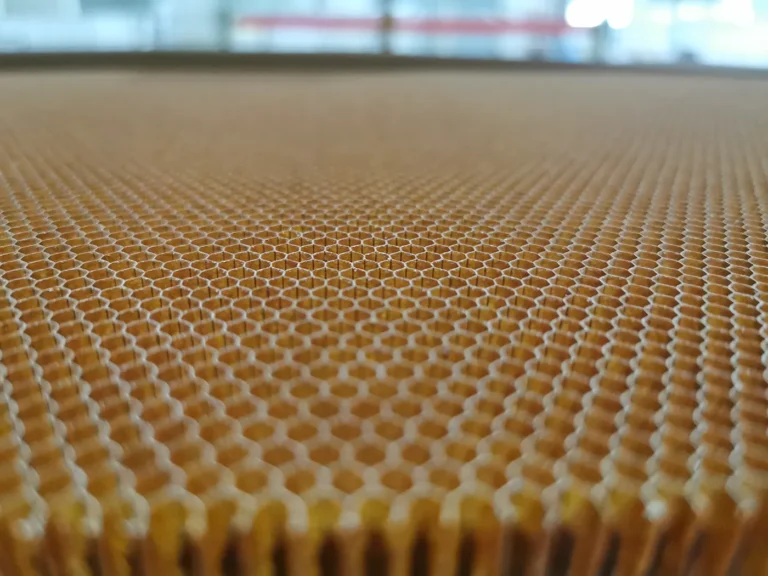

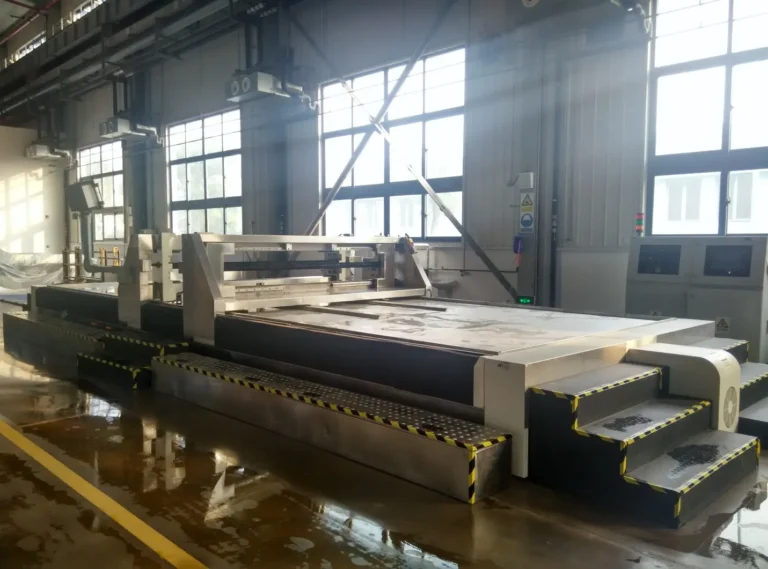

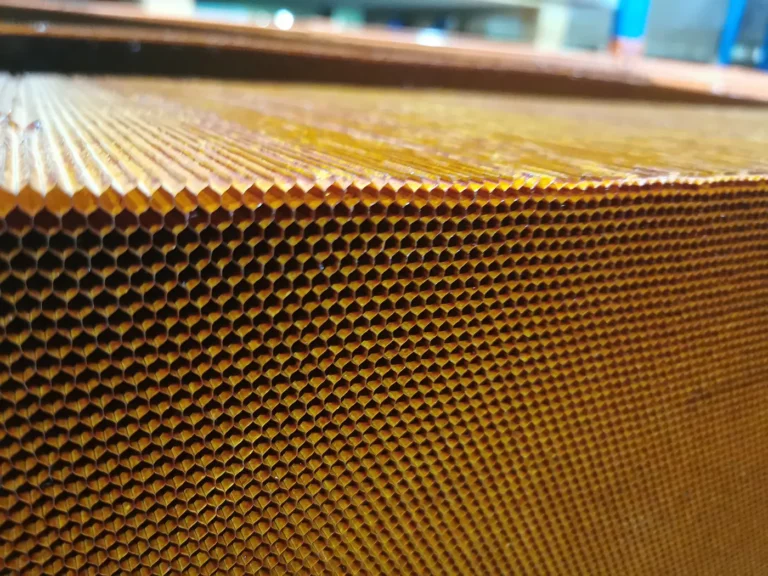

It is available in different cell sizes such as 3.2mm, 4.0 mm, 4.8 mm, 6.4 mm, and 9.6 mm, with a density ranging from 24 kg/m³ to 144 kg/m³. It has regular cell sizes, even density, and consistent color, and its physical property, mechanical property, and fire-resistance property can meet the material standard of commercial aircraft. Highly efficient, technologically advanced automated production lines can produce large-sized honeycomb up to 2,440 mm(W), 1,220 mm(L), and 914 mm(H), leading the industry’s efficiency and technology.
Argosy Aramid Honeycomb Core is widely used in:

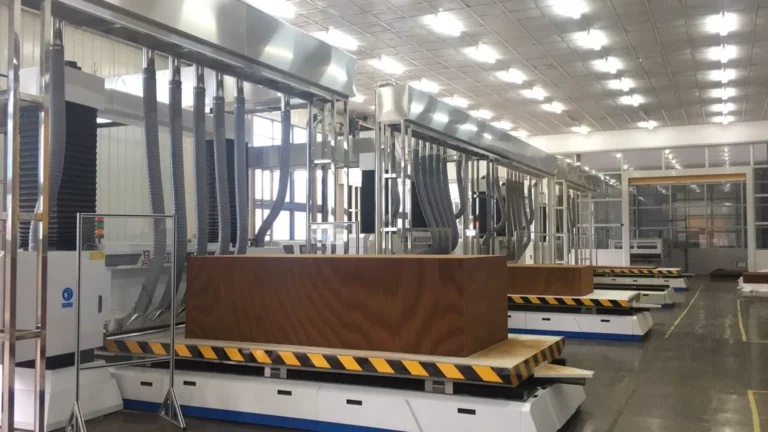

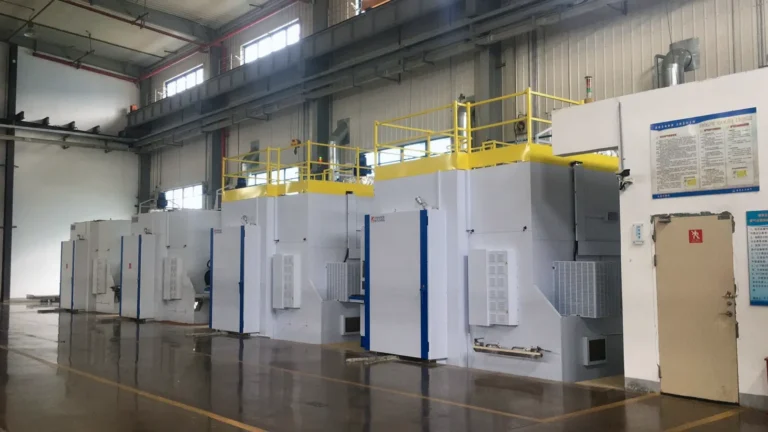

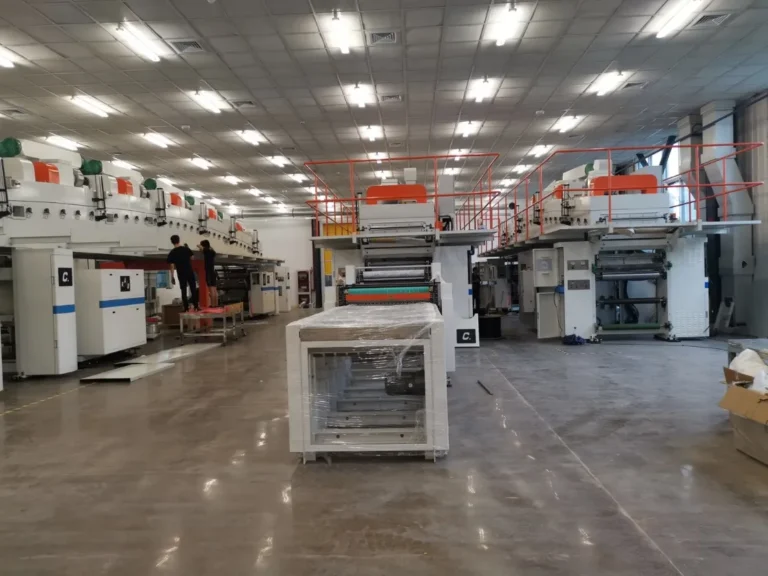

State of the art honeycomb manufacturing facility with sawing and machining capabilities.
Aerospace and commercial grades of meta and para aramid honeycombs.
MECHANICAL PROPERTIES OF COMMERCIAL GRADE HONEYCOMB AT ROOM TEMPERATURE
| PRODUCT DESCRIPTION | DATA TYPE | BARE COMP. /MPa - STRENGTH | STAB. COMP. /MPa - STRENGTH | STAB. COMP. /MPa - MOD | L SHEAR PROPERTIES /MPa - STRENGTH | L SHEAR PROPERTIES /MPa - MOD | W SHEAR PROPERTIES /MPa - STRENGTH | W SHEAR PROPERTIES /MPa - MOD |
|---|---|---|---|---|---|---|---|---|
| ACCH-2-1/8-1.8 | MIN AVG. | 115 | 130 | - | 92 | 4.6 | 54 | 2.1 |
| MIN IND | 113 | 127 | - | 88 | 4.2 | 52 | 2.0 | |
| ACCH-2-1/8-1.8 | MIN AVG. | 112 | 117 | - | 89 | 4.6 | 53 | 2.4 |
| MIN IND. | 105 | 115 | - | 87 | 4.3 | 52 | 2.2 | |
| ACCH-2-1/8-1.8 | MIN AVG. | 90 | 113 | - | 89 | 4.1 | 54 | 2.4 |
| MIN IND. | 84 | 80 | - | 86 | 4.0 | 53 | 2.3 | |
| ACCH-2-1/8-3.0 | MIN AVG. | 328 | 331 | - | 190 | 7.1 | 113 | 3.9 |
| MIN IND. | 322 | 319 | - | 183 | 6.8 | 112 | 3.8 | |
| ACCH-2-1/8-3.0 | MIN AVG. | 299 | 329 | - | 189 | 7.7 | 126 | 4.8 |
| MIN IND. | 294 | 325 | - | 181 | 7.4 | 123 | 4.7 | |
| ACCH-2-1/8-3.0 | MIN AVG. | 315 | 303 | - | 191 | 7.5 | 124 | 4.6 |
| MIN IND. | 305 | 289 | - | 187 | 7.5 | 122 | 4.5 |
