5000 Series Aluminum Honeycomb Core

Lightweight honeycomb core that has a regular hexahedron structure

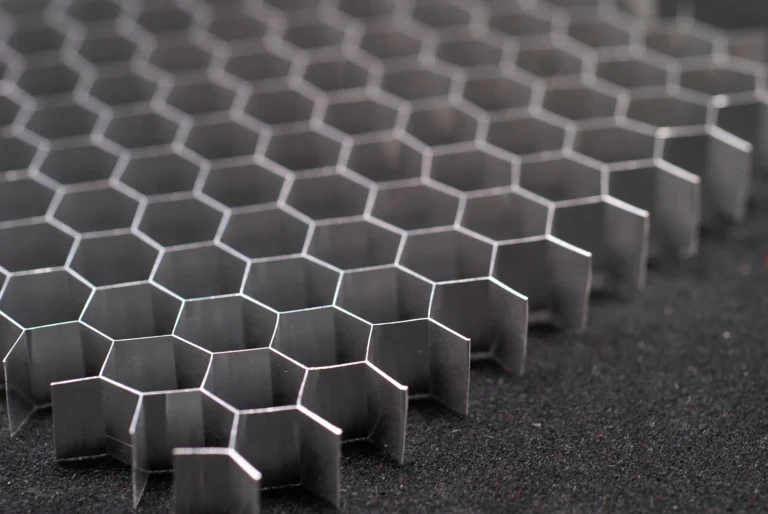

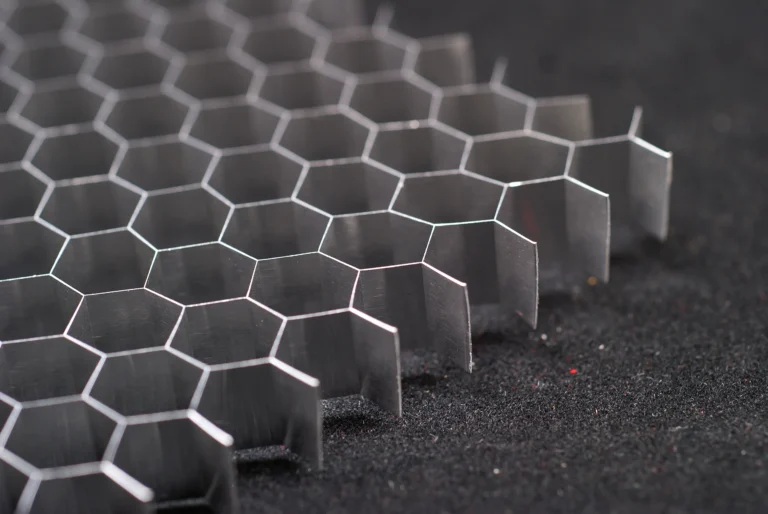

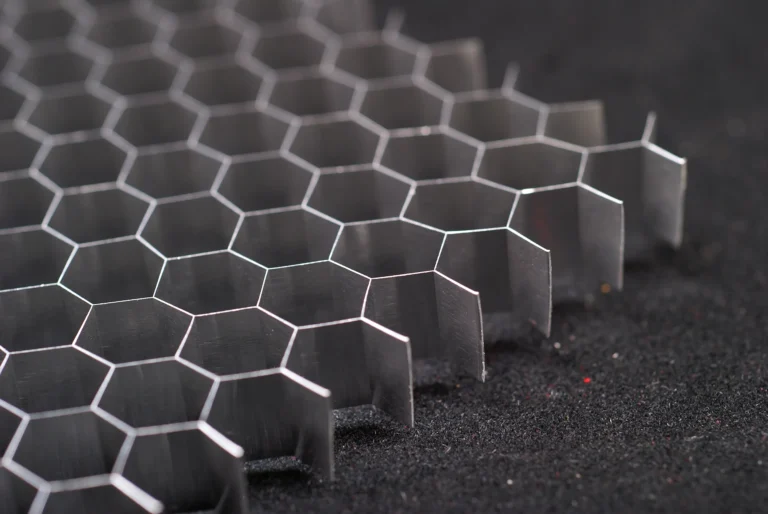

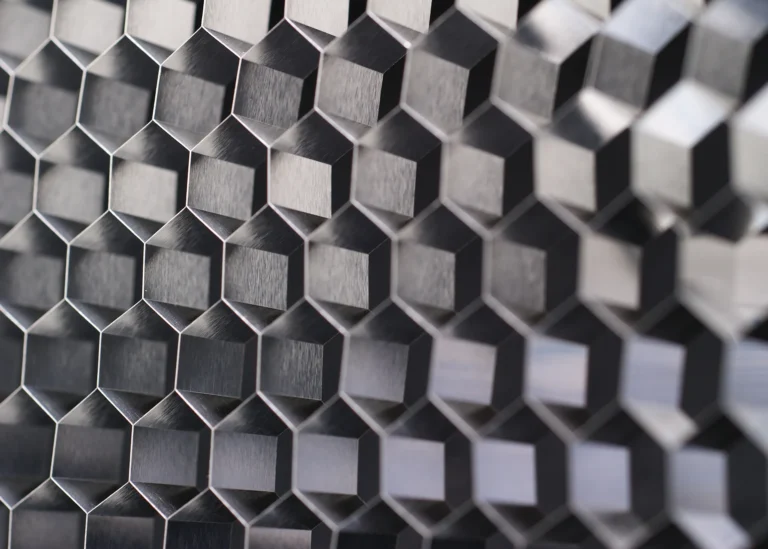

ARGOSY 5000 Series Aluminum Honeycomb is a lightweight honeycomb core that has a regular hexahedron structure; high-quality aluminum foil is selected for phosphorous anodization or chromizing. Features include:

  • Low density
  • High strength
  • Rigidity
  • Shock resistance
  • Sound shock absorption
  • Acoustic absorption
  • Thermal insulation

The product displays excellent dynamic performance and corrosion resistance. Manufactured to AMS-C-7438 Standards.

Contact Us
5000 Series Aluminum Honeycomb Core

Typical Applications

ARGOSY 5000 Series Aluminum Honeycomb is widely used
in aerospace components including:

  • Radome
  • Wing
  • Tailcone
  • Floor Applications

Features

  • Excellent energy absorption qualities
  • Corrosion and fungus resistant
  • Tailcone
  • Low cost/high value

Technical Data

wdt_ID newcolumn Product Features
1 Density (g/cm³) 1.4 pcf - 9 pcf (22.4 kg/m³ - 144 kg/m³)
2 Aluminum Foil Thickness 0.018 mm - 0.07 mm
3 Cell Specifications 1/8" - 3/8" (3 mm - 5 mm)
4 Side Length of Cell 1.8 mm - 5.5 mm
5 Thickness of Honeycomb Core Slices 0.12" - 35" (3 mm - 900 mm) tolerance +/- 0.1 mm
6 Length W and Width L 48" x 96" standard size, expanded honeycomb
wdt_ID BC-5.01-3-N-5052 (48L x 90W) Series 5000 Mark of Specifications
1 BC B - Block; S- Slice; E - Expanded; C - Coated with Chromate; UC - Uncoated; NC - Non-Chrome Coated; PPA - Phosphate Anodization Treatment
2 5.01 Honeycomb Density, United lb/foot³
3 3 Cell Size, Side Length of Cell, Unit: mm
4 N N - Non-perforated, P - Perforated
5 5052 Aluminum Foil 5052
6 (48L X 96W) 48L - Length, Unit: inch; 96W - Width, Unit: inch
