Vented Aluminum Honeycomb

Utilized in a wide range of tooling applications

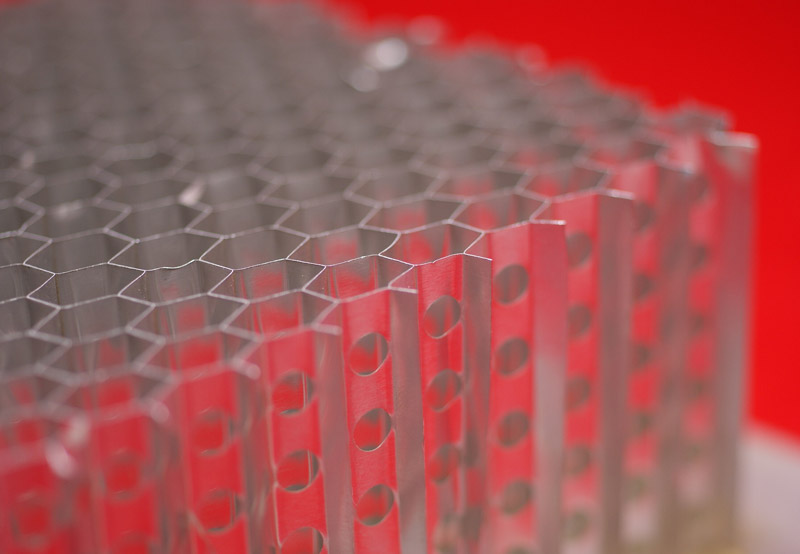

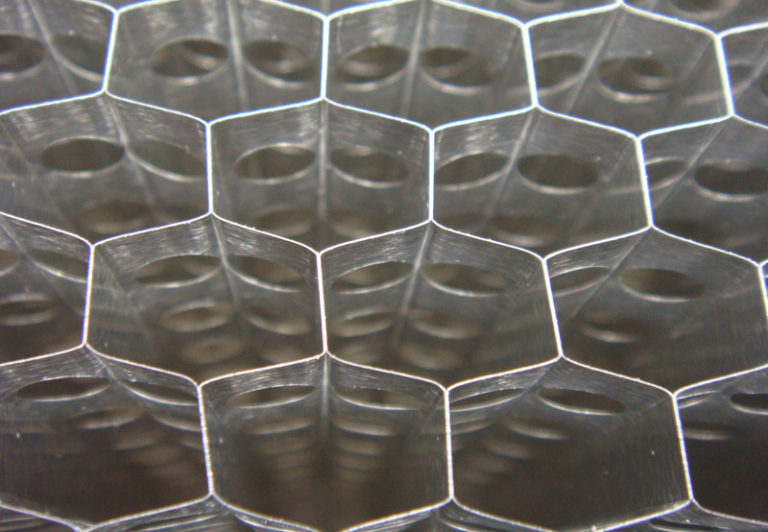

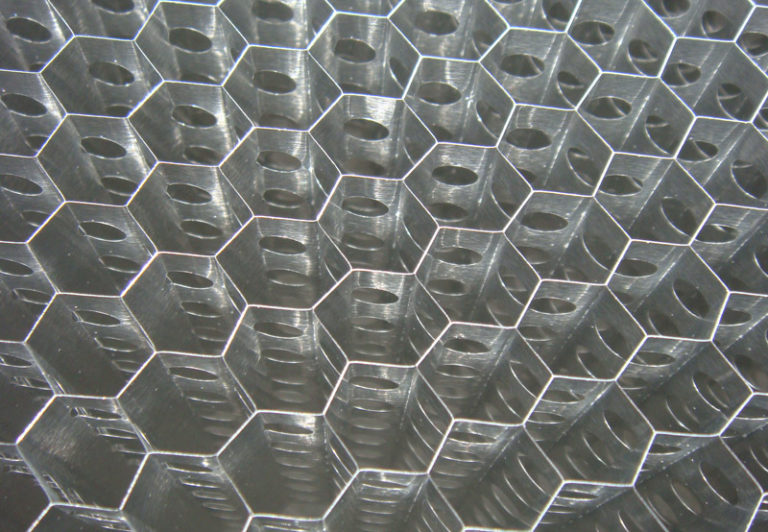

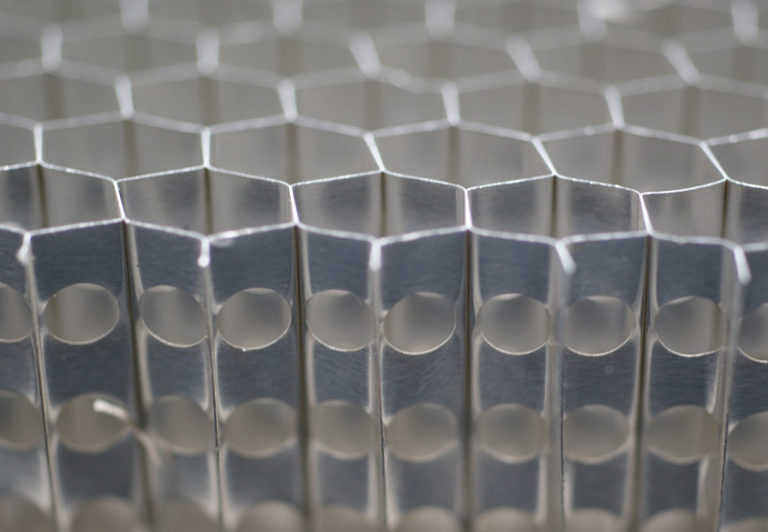

ARGOSY Vented (drilled) Aluminum Honeycomb Core is a stiff and stable lightweight product used primarily in tooling applications. Vented honeycomb facilitates the even distribution of heat through the tool. This ensures a consistent, even cure throughout the laminate and minimizes the risk of localized areas of semi-cured material.

Vented Aluminum Honeycomb

Typical Applications

ARGOSY Vented (drilled) Aluminum Honeycomb Core is utilized in a wide range of tooling applications where lightweight, high flex strength, corrosion-resistant, low-cost honeycomb core is desired.

  • Tooling applications
  • Airflow control / heat transfer
  • Energy absorption

Properties

  • Material: Aluminum Alloy 3003
  • Use Temperature: 180°C and beyond
  • Coefficient of Thermal Expansion: 13.2 x 10-6
    inch/inch-°F

Specific Dimensions

  • Cell Size: 3/8 inches (9.6mm)
  • Foil Thickness: 3×10³ inches ± 10%
  • Plate size:
    Length: 1000-0/+50 mm
    Width: 2500-0/+50 mm
    Thickness: 60 ± 0.125 mm
  • N° Drills: 6

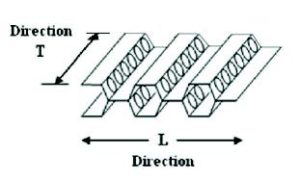

  • Number of holes: 6 equal distance holes through T direction
  • Hole diameter is 5 mm

Vented Honeycomb Core
