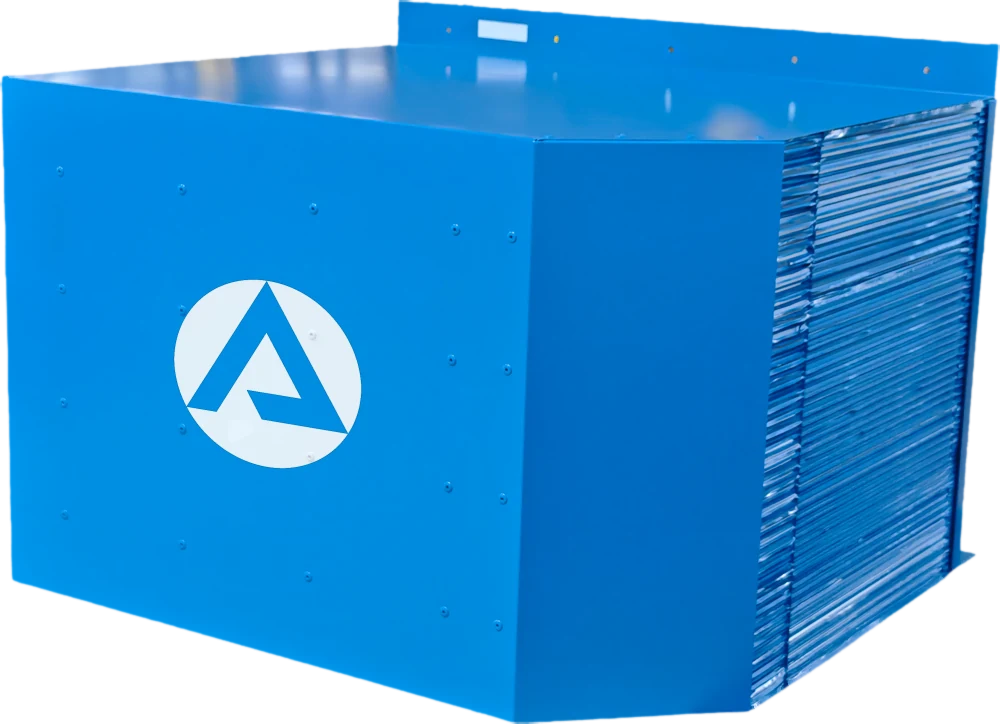

The 50% Overlap Suitable for China Mobile Progressive Deformable Barrier (SC-MPDB) is used for frontal impact crashworthiness evaluations in C-NCAP 2027.
The impact barrier consists of four aluminum honeycomb blocks covered by cladding and a cover plate. Blocks 1 and 4 have constant impact deformation forces, while blocks 2 and 3 exhibit progressive forces as deformation increases.
Overall Dimensions
Total width of 1,000 mm (±2.5 mm) and a total height of 670 mm (±2.5 mm)
Block 1
300 mm ± 2.5 mm depth, cell size 9 mm ± 10%
Block 2
500 mm ± 2.5 mm depth, cell size 10 mm ± 10%
Block 3
500 mm ± 2.5 mm depth, cell size 6 mm ± 10%
Block 4
50 mm ± 2.5 mm depth, cell size 6 mm ± 10%
Honeycomb Material
3003 aluminum for all blocks
Back Plate
AlMg2 to AlMg3 series aluminum, 3.0 mm ± 0.2 mm thickness, 50-67 HBS hardness
Contact Plate
1050A H24 aluminum, 1.5 mm ± 0.1 mm thickness
Partition Plate
5754 H111 aluminum, 0.5 mm ± 0.06 mm thickness
Cladding & Cover Plate
5754 H22 aluminum, 0.8 mm ± 0.1 mm thickness
Adhesive
Two-component polyurethane adhesive, applied with a maximum film thickness of 0.5 mm
Rivets
6 mm diameter hollow aluminum or steel rivets
Designed in accordance with the C-NCAP 2027 (TR01 50% OVERLAP MPDB TECHNICAL REQUIREMENTS).
The static crush strength for every honeycomb block conforms to the specific corridors mandated by the test protocol.
Manufactured under an ISO 9001:2015 certified Quality Management System to consistently meet product specifications and customer requirements.
